VT83201

3.3V Low Phase Noise VCXO

VT83201 Features

* =

* =

* =

* =

* = 3.3V supply operation Packaged in 16-pin SOIC package Replaces separate VCXO and multiplier Uses inexpensive pullable crystal On-chip VCXO with 200 ppm pull range (±100 ppm)

* =

* = 5V-tolerant control inputs Zero ppm synthesis err

VT83201 General Description

The Vaishali VT83201 is a single-chip, integrated VCXO and Phase Locked Loop (PLL) clock synthesizer. The device uses the VCXO and an analog Phase-Locked Loop (PLL) to accept a 10 MHz to 20 MHz, 30pF (pull range of 200 ppm) crystal input, in order to produce either one or two output clocks. A 0 to 3.

VT83201 Datasheet (45.54 KB)

Preview of VT83201 PDF

Datasheet Details

Part number:

VT83201

Manufacturer:

Vaishali Semiconductor

File Size:

45.54 KB

Description:

3.3v low phase noise vcxo.

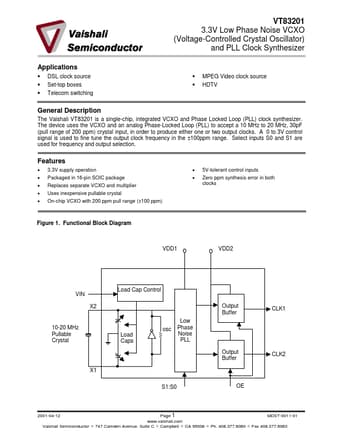

VT83201 3.3V Low Phase Noise VCXO (Voltage-Controlled Crystal Oscillator) and PLL Clock Synthesizer Applications

*=

*=

*= DSL .
