VT98521

3.3V Clock Multiplier

VT98521 Features

* =

* =

* =

* =

* =

* = Low phase noise Zero ppm multiplication error Input clock frequency 5 - 50 MHz. Input crystal frequency 5

* 27 MHz Output clock frequencies up to 220 MHz. 5V-tolerant inputs and output

* =

* =

* =

VT98521 General Description

The VT98521 is a 3.3V CMOS, clock multiplier integrated circuit. The device provides an excellent quality high frequency output clock from a lower frequency crystal or clock input. Tri-level selection inputs S0 and S1 are used to select any one of eight multipliers, stored in the on-board ROM, and a.

VT98521 Datasheet (181.88 KB)

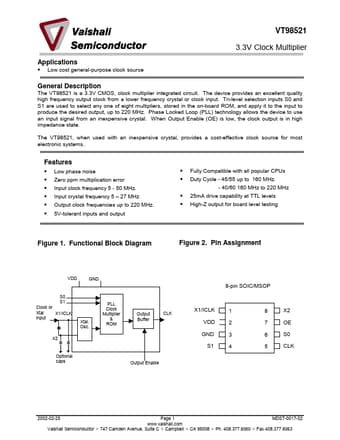

Preview of VT98521 PDF

Datasheet Details

Part number:

VT98521

Manufacturer:

Vaishali Semiconductor

File Size:

181.88 KB

Description:

3.3v clock multiplier.
