VS5814AS Datasheet - Vanguard Semiconductor

VS5814AS, N-Channel Advanced Power MOSFET

.

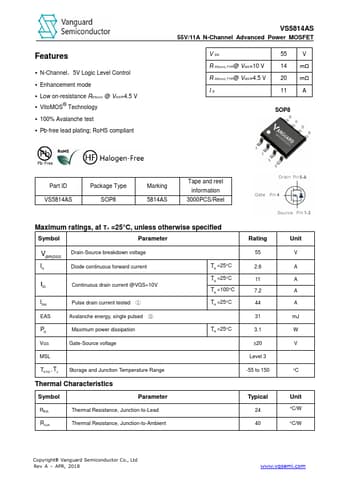

datasheet Preview Page 1 from Datasheet4u.com

VS5814AS-VanguardSemiconductor.pdf

Preview of VS5814AS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

VS5814AS

Manufacturer:

Vanguard Semiconductor

File Size:

709.50 KB

Description:

N-Channel Advanced Power MOSFET

Features

* N-Channel，5V Logic Level Control
* Enhancement mode
* Low on-resistance RDS(on) @ VGS=4.5 V
* VitoMOS® Technology
* 100% Avalanche test
* Pb-free lead plating; RoHS compliant VS5814AS 55V/11A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.
