VS6019AS

N-Channel Advanced Power MOSFET

VS6019AS Features

* N-Channel,5V Logic Level Control

* Enhancement mode

* Very low on-resistance RDS(on) @ VGS=4.5 V

* Fast Switching

* 100% Avalanche test

* Pb-free lead plating; RoHS compliant VS6019AS 60V/20A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.

VS6019AS Datasheet (550.06 KB)

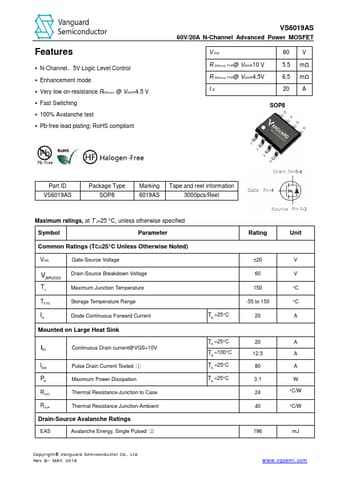

Preview of VS6019AS PDF

Datasheet Details

Part number:

VS6019AS

Manufacturer:

Vanguard Semiconductor

File Size:

550.06 KB

Description:

N-channel advanced power mosfet.
