VS6065AD - N-Channel Advanced Power MOSFET

Name: VS6065AD
SKU: VS6065AD-1282032

Vanguard Semiconductor

The VS6065AD by Vanguard Semiconductor is a N-Channel Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	VS6065AD
Manufacturer	Vanguard Semiconductor
File Size	322.39 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	VS6065AD-VanguardSemiconductor.pdf

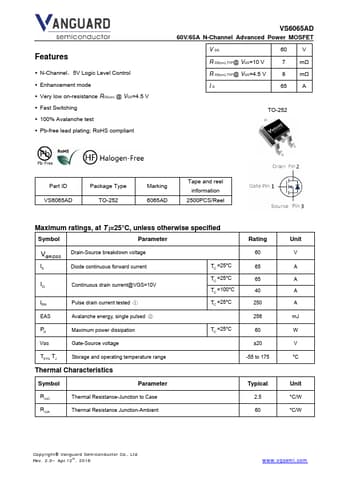

Additional preview pages of the VS6065AD datasheet.

N-Channel，5V Logic Level Control.
Enhancement mode.
Very low on-resistance RDS(on) @ VGS=4.5 V.
Fast Switching.
100% Avalanche test.
Pb-free lead plating; RoHS compliant VS6065AD 60V/65A N-Channel Advanced Power MOSFET V DS 60 V R @DS(on),TYP VGS=10 V 7 mΩ R @DS(on),TYP VGS=4.5 V 8 mΩ I D 65 A TO-252 Part ID VS6065AD Package Type TO-252 Marking 6065AD Tape and reel information 2500PCS/Reel Maximum ratings, at T j=25°C, unless otherwise specified Symb.
