VS6808DH Dual N-Channel Advanced Power MOSFET

VS6808DH 20V/6A Common-Drain Dual N-Channel Advanced Power MOSFET .

VS6808DH-VanguardSemiconductor.pdf

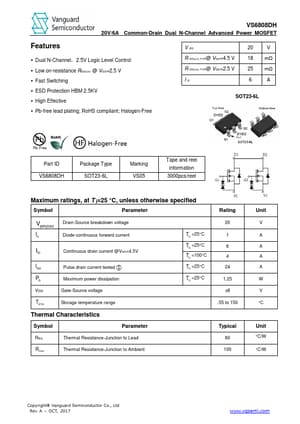

VS6808DH Datasheet Preview — Preview of VS6808DH PDF

Datasheet Details

Part number:

VS6808DH

Manufacturer:

Vanguard Semiconductor

File Size:

566.96 KB

Description:

Dual N-Channel Advanced Power MOSFET

Features

* Dual N-Channel，2.5V Logic Level Control
* Low on-resistance RDS(on) @ VGS=2.5 V
* Fast Switching
* ESD Protection HBM 2.5KV
* High Effective
* Pb-free lead plating; RoHS compliant; Halogen-Free V DS R @DS(on),TYP VGS=4.5 V R @DS(on),TYP VGS=2.5 V ID 20 V 18 mΩ 25 mΩ 6A S
