VSD014P04MS Datasheet - Vanguard Semiconductor

VSD014P04MS, P-Channel Advanced Power MOSFET

.

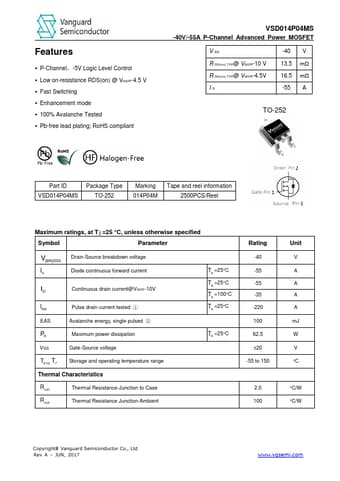

Datasheet Preview Page 1

VSD014P04MS-VanguardSemiconductor.pdf

Preview of VSD014P04MS PDF

Datasheet Details

Part number:

VSD014P04MS

Manufacturer:

Vanguard Semiconductor

File Size:

414.37 KB

Description:

P-Channel Advanced Power MOSFET

Features

* P-Channel，-5V Logic Level Control
* Low on-resistance RDS(on) @ VGS=-4.5 V
* Fast Switching
* Enhancement mode
* 100% Avalanche Tested
* Pb-free lead plating; RoHS compliant VSD014P04MS -40V/-55A P-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=-10 V R @DS(on),TYP V
