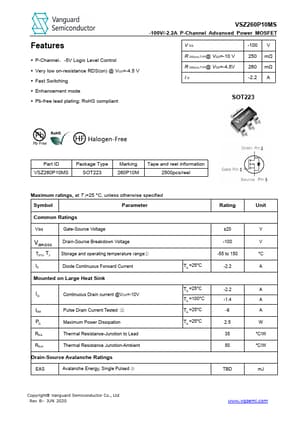

VSZ260P10MS - P-Channel Advanced Power MOSFET

Vanguard Semiconductor

Datasheet Details

Part number	VSZ260P10MS
Manufacturer	Vanguard Semiconductor
File Size	692.72 KB
Description	P-Channel Advanced Power MOSFET
Datasheet	VSZ260P10MS-VanguardSemiconductor.pdf

P-Channel，-5V Logic Level Control.
Very low on-resistance RDS(on) @ VGS=-4.5 V.
Fast Switching.
Enhancement mode.
Pb-free lead plating; RoHS compliant VSZ260P10MS -100V/-2.2A P-Channel Advanced Power MOSFET V DS R @ DS(on),TYP VGS=-10 V R @ DS(on),TYP VGS=-4.5V ID -100 V 250 mΩ 260 mΩ -2.2 A SOT223 Part ID Package Type VSZ260P10MS SOT223 Marking Tape and reel information 260P10M 2500pcs/reel Maximum ratings, at T j=25 °C, unless otherwise specified Symbol.
