BP60040 Datasheet - Vanlong Technology

BP60040 SAW Filter

70 MHz Bandpass SAW Filter www.DataSheet4U.com 70 MHz Bandpass SAW Filter 34 MHz Bandwidth Specifications Parameter Center Frequency at 25°C Insertion Loss at fc 1 dB Bandwidth 3 dB Bandwidth 40dB Bandwidth Passband Variation Phase Linearity Group Delay Variation Absolute Delay Ultimate Rejection Substrate Material Ambient Temperature Operating Temperature Range Sym fc IL BW1 BW3 BW40 Ta To Minimum 69.8 31.0 34.0 45 -55 Typical 70 23.1 31.9 35.1 51.8 0.4 6.0 20 2 50 128-LiNbO3 25 25 Maximum 70..

BP60040_VanlongTechnology.pdf

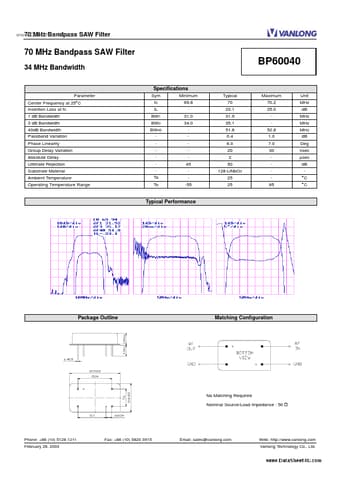

Preview of BP60040 PDF

Datasheet Details

Part number:

BP60040

Manufacturer:

Vanlong Technology

File Size:

66.52 KB

Description:

Saw filter.
