BP60100 Datasheet - Vanlong Technology

BP60100 SAW Filter

70 MHz Bandpass SAW Filter www.DataSheet4U.com 70 MHz Bandpass SAW Filter 22 MHz Bandwidth Specifications Parameter Center Frequency at 25°C Insertion Loss at fc 1 dB Bandwidth 3 dB Bandwidth 40dB Bandwidth Passband Variation Phase Linearity Group Delay Variation Absolute Delay Ultimate Rejection Substrate Material Ambient Temperature Operating Temperature Range Sym fc IL BW1 BW3 BW40 Ta To Minimum 69.8 20.6 22.0 55 -55 Typical 70 19.7 21.1 22.7 27.5 0.5 3.0 30 1.4 60 128-LiNbO3 25 25 Maximum 7.

BP60100_VanlongTechnology.pdf

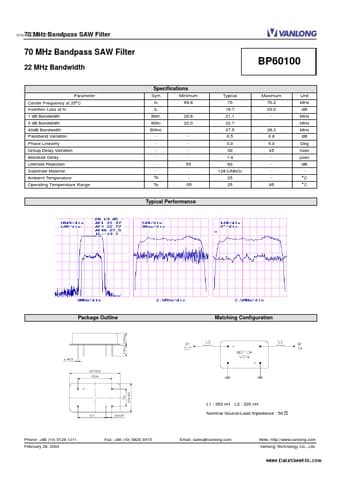

Preview of BP60100 PDF

Datasheet Details

Part number:

BP60100

Manufacturer:

Vanlong Technology

File Size:

66.70 KB

Description:

Saw filter.
