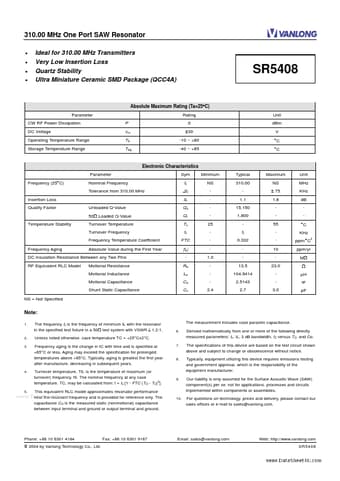

310.00 MHz One Port SAW Resonator
• • • •
Ideal for 310.00 MHz Transmitters Very Low Insertion Loss Quartz Stability Ultra Miniature Ceramic SMD Package (QCC4A)
SR5408
Absolute Maximum Rating (Ta=25°C) Parameter CW RF Power Dissipation DC Voltage Operating Temperature Range Storage Temperature Range P
VDC
Rating 0 ±30 -10 ~ +60 -40 ~ +85
Unit dBm V °C °C
TA Tstg
Electronic Characteristics Parameter Frequency (25°C) Nominal Frequency Tolerance from 310.00 MHz Insertion Loss Quality Factor Unloaded Q-Value 50Ω Loaded Q-Value Temperature Stability Turnover Temperature Turnover Frequency Frequency Temperature Coefficient Frequency Aging Absolute Value during the First Year Sym fc Minimum NS 25 1.0 2.4 Typical 310.00 1.1 15,150 1,800 fc 0.032 13.5 104.9414 2.5143 2.7 Maximum NS ± 75 1.
SR5408 Datasheet
