MACH221-15 Datasheet - Vantis

MACH221-15 High-Performance EE CMOS Programmable Logic

The MACH221 is a member of Vantis’ high-performance EE CMOS MACH® 1 & 2 families. This device has approximately nine times the logic macrocell capability of the popular PALCE22V10 without loss of speed. The MACH221 consists of eight PAL® blocks interconnected by a programmable switch matrix. The eig.
MACH 1 & 2 Families 1 FINAL MACH 1 & 2 FAMILIES COM’L: -7/10/12/15 IND: -10/-12/14/18 MACH221-7/10/12/15 High-Performance EE CMOS Programmable Logic DISTINCTIVE CHARACTERISTICS x 68 Pins in PLCC x 96 Macrocells x 7.5 ns tPD Commercial, 10 ns tPD Industrial x 133 MHz fCNT x 48 I/Os; 4 dedicated inputs; 4 dedicated inputs/clocks x 96 Flip-flops; 4 clock choices x 8 “PALCE26V12" blocks with buried macrocells x SpeedLocking™ for guaranteed fixed timing x Bus-Friendly™ Inputs and I/Os x Periphera.

MACH221-15 Datasheet (166.48 KB)

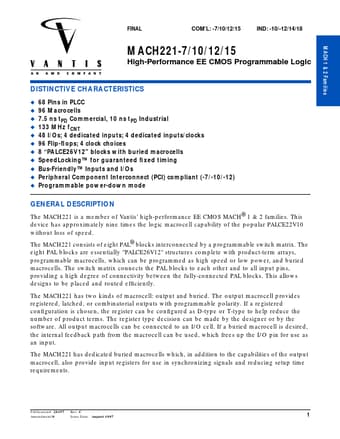

Preview of MACH221-15 PDF

Datasheet Details

Part number:

MACH221-15

Manufacturer:

Vantis

File Size:

166.48 KB

Description:

High-performance ee cmos programmable logic.
