FX-101 - Frequency Translator

Datasheet Summary

Description

Vectron's FX-101 is a crystal based frequency translator which is used to translate any input frequency such as 8 kHz, 1.544 MHz, 2.048 MHz, 19.440 MHz etc.to any specific frequency less than or equal to 77.76 MHz.

Features

  • Output frequencies up to 77.760 MHz.
  • Jitter Generation OC-192 compliant.
  • Jitter transfer per GR-253-CORE.
  • Single 5.0 or 3.3 Vdc supply.
  • Locked to specified Input frequency, e. g. 8 kHz.
  • 1" X 0.8" X 0.2", Surface Mount (FR4base).
  • Optional CMOS or PECL Output.

📥 Download Datasheet

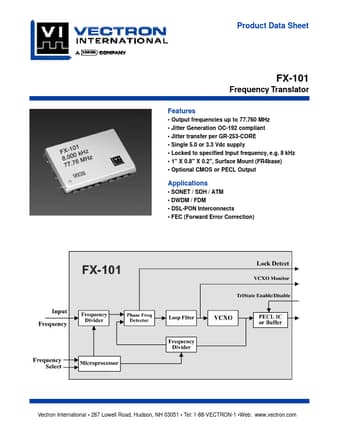

Datasheet preview – FX-101

Datasheet Details

Part number FX-101
Manufacturer Vectron
File Size 597.21 KB
Description Frequency Translator
Datasheet download datasheet FX-101 Datasheet
Additional preview pages of the FX-101 datasheet.
