TX-707 - Temperature Compensated Crystal Oscillator

TX-707 Description

TX-707 Low g-Sensitivity Temperature Compensated Crystal Oscillator TX-707 .
The TX-707 Series TCXO combines innovative manufacturing and the latest technology to provide low phase noise and excellent g-sensitivity.

TX-707 Features

* Operating Temperature Range to +105°C
* Low Phase Noise, Low g-sensitivity 0.1ppb/g
* Fully RoHS Compliant
* Surface Mount, Low Profile
* High Shock Survival up to 20k g
* Frequency Range: 8.184 MHz to 50 MHz
* Fully Hermetic Seal Applicatio

TX-707 Applications

* Military Portable Radios
* GPS Telemetry
* Test and Measurement Equipment
* Missile systems
* GNSS
* SATCOM Performance Specifications Parameter vs. operating temperature range (referenced to +25°C) Initial Tolerance vs. supply voltage change vs. l

📥 Download Datasheet

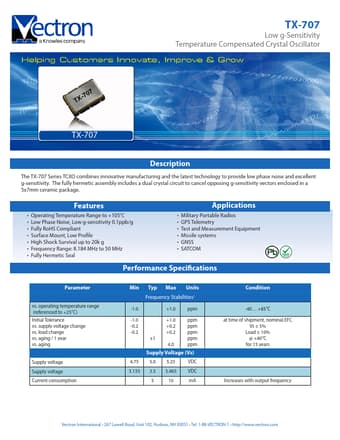

Preview of TX-707 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TX-707
Manufacturer
Vectron
File Size
973.36 KB
Datasheet
TX-707-Vectron.pdf
Description
Temperature Compensated Crystal Oscillator
