VS-720 - Voltage Controlled SAW Oscillator

Description

The VS-720 is a Voltage Controlled SAW Oscillator that achieves low phase noise and very low jitter performance.

Features

  • Industry Standard Package, 5.0 x 7.5 x 2.0 mm ASIC Technology For Ultra Low Jitter 0.100 ps-rms typical across 12 kHz to 20 MHz BW 0.120 ps-rms typical across 50 kHz to 80 MHz BW Output Frequencies from 150 MHz to 800 MHz 3.3 V Operation LV-PECL or LVDS Configuration with Fast Transition Times Complementary Outputs Output Disable Feature Improved Temperature Stability over Standard VCSO Product is free of lead and compliant to EC RoHS Directive.

📥 Download Datasheet

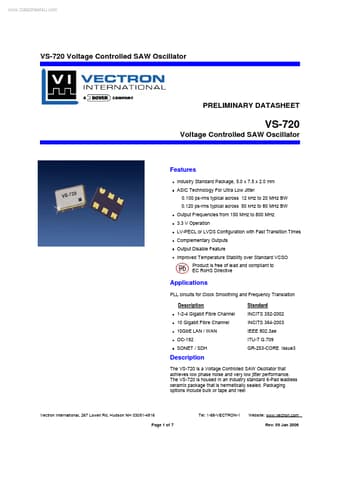

Datasheet preview – VS-720

Datasheet Details

Part number VS-720
Manufacturer Vectron
File Size 212.89 KB
Description Voltage Controlled SAW Oscillator
Datasheet download datasheet VS-720 Datasheet
Additional preview pages of the VS-720 datasheet.

📁 Similar Datasheet

Other Datasheets by Vectron

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com VS-720 Voltage Controlled SAW Oscillator PRELIMINARY DATASHEET VS-720 Voltage Controlled SAW Oscillator Features Industry Standard Package, 5.0 x 7.5 x 2.0 mm ASIC Technology For Ultra Low Jitter 0.100 ps-rms typical across 12 kHz to 20 MHz BW 0.120 ps-rms typical across 50 kHz to 80 MHz BW Output Frequencies from 150 MHz to 800 MHz 3.
