Datasheet Details
- Part number
- CR01005-32W
- Manufacturer
- Venkel
- File Size
- 611.54 KB
- Datasheet
- CR01005-32W-Venkel.pdf
- Description
- Chip Resistors
CR01005-32W Description

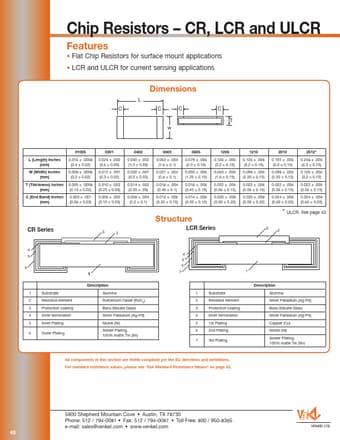

Chip Resistors * CR, LCR and ULCR .
CR01005-32W Applications
* LCR and ULCR for current sensing applications
Dimensions
L C CC
w
C T
L (Length) Inches (mm)
W (Width) Inches (mm)
T (Thickness) Inches (mm)
C (End Band) Inches (mm)
01005
0.016 ± .0008 (0.4 ± 0.02)
0.008 ± .0008 (0.2 ± 0.02)
0.005 ± .0008 (0.13 ± 0.02)
0.003 ± .001 (0.08 ± 0.03)
0201
