FBM0603-xxx - (FBMxxxx-xxx) Ferrite Beads

This page provides the datasheet information for the FBM0603-xxx, a member of the FBM0805 (FBMxxxx-xxx) Ferrite Beads family.

📥 Download Datasheet

FBM0603-xxx (FBMxxxx-xxx) Ferrite Beads by Venkel - Datasheet Preview — Datasheet preview – FBM0603-xxx

Datasheet Details

Part number	FBM0603-xxx
Manufacturer	Venkel
File Size	652.39 KB
Description	(FBMxxxx-xxx) Ferrite Beads
Datasheet	FBM0603-xxx Datasheet
Additional preview pages of the FBM0603-xxx datasheet.

📁 Similar Datasheet

FBM0603 - Multilayer Chip Bead (HITANO)
FBM0603 - (FBMxxxx) Chip Ferrite Beads (ETC)
FBM0402 - Multilayer Chip Bead (HITANO)
FBM0402 - (FBMxxxx) Chip Ferrite Beads (ETC)
FBM0805 - Multilayer Chip Bead (HITANO)
FBM0805 - (FBMxxxx) Chip Ferrite Beads (ETC)
FBM-09-160808-121T - Multilayer Chip Beads (ETC)
FBM-09-160808-241T - Multilayer Chip Beads (ETC)
FBM-10-100505-121T - Multilayer Chip Beads (ETC)
FBM-10-100505-151T - Multilayer Chip Beads (ETC)

Other Datasheets by Venkel

FBM0402-xxx - (FBMxxxx-xxx) Ferrite Beads
FBM0805 - (FBMxxxx-xxx) Ferrite Beads
FBM0805-xxx - (FBMxxxx-xxx) Ferrite Beads
FBM1206-xxx - (FBMxxxx-xxx) Ferrite Beads

Full PDF Text Transcription

Click to expand full text

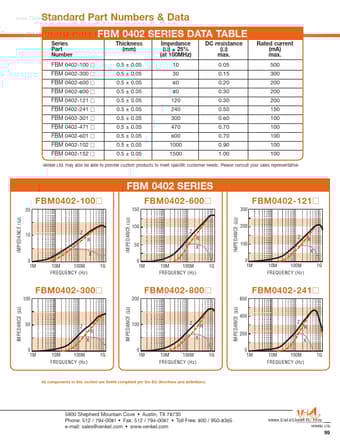

www.DataSheet4U.com Standard Part Numbers & Data FBM 0402 SERIES DATA TABLE Series Thickness Part (mm) Number FBM 0402-100  FBM 0402-300  FBM 0402-600  FBM 0402-800  FBM 0402-121  FBM 0402-241  FBM 0402-301  FBM 0402-471  FBM 0402-601  FBM 0402-102  FBM 0402-152  0.5 ± 0.05 0.5 ± 0.05 0.5 ± 0.05 0.5 ± 0.05 0.5 ± 0.05 0.5 ± 0.05 0.5 ± 0.05 0.5 ± 0.05 0.5 ± 0.05 0.5 ± 0.05 0.5 ± 0.05 Impedance (W) ± 25% (at 100MHz) 10 30 60 80 120 240 300 470 600 1000 1500 DC resistance (W) max. 0.05 0.15 0.20 0.30 0.30 0.50 0.60 0.70 0.70 0.90 1.00 Rated current (mA) max. 500 300 200 200 200 150 100 100 100 100 100 Venkel Ltd.

Published: Oct 17, 2007 |
