VS4620DE-G 40V/14A Dual N-Channel Advanced Power MOSFET

VS4620DE-G Description

VS4620DE-G 40V/14A Dual N-Channel Advanced Power MOSFET .

VS4620DE-G Features

* V DS R @ DS(on),TYP VGS=10V 40 V 9 mΩ
* Dual N-Channel R @ DS(on),TYP VGS=4.5V 12 mΩ
* Enhancement mode
* VitoMOS® Ⅱ Technology I D(Silicon Limited) I D(Package Limited) 47 A 14 A
* 100% Avalanche Tested,100% Rg Tested
* Optimized Qg, Qgd, and Qgd/Qgs ratio to minimize s

📥 Download Datasheet

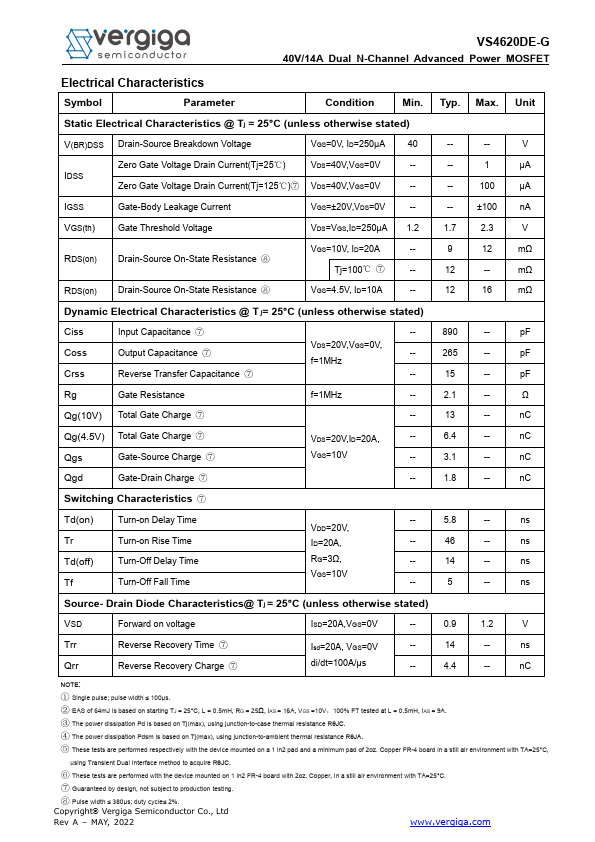

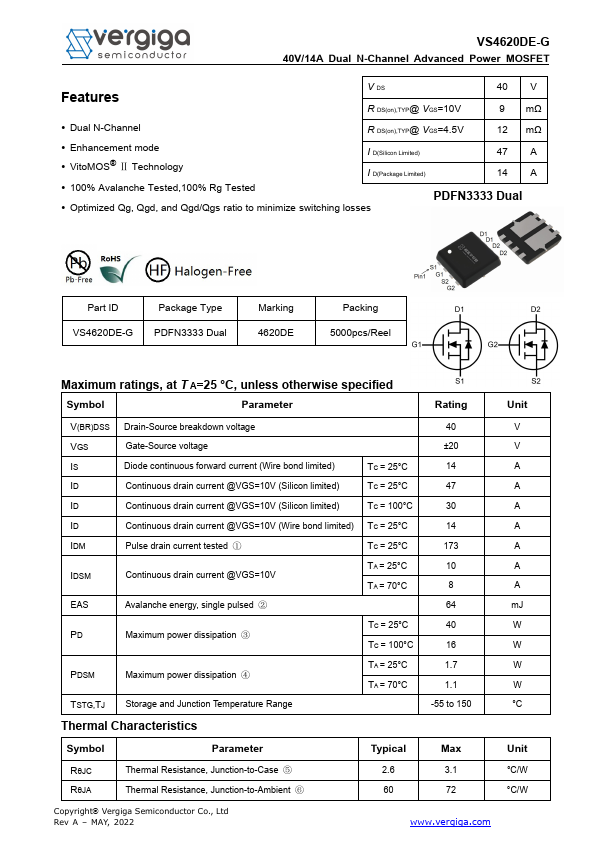

Preview of VS4620DE-G PDF

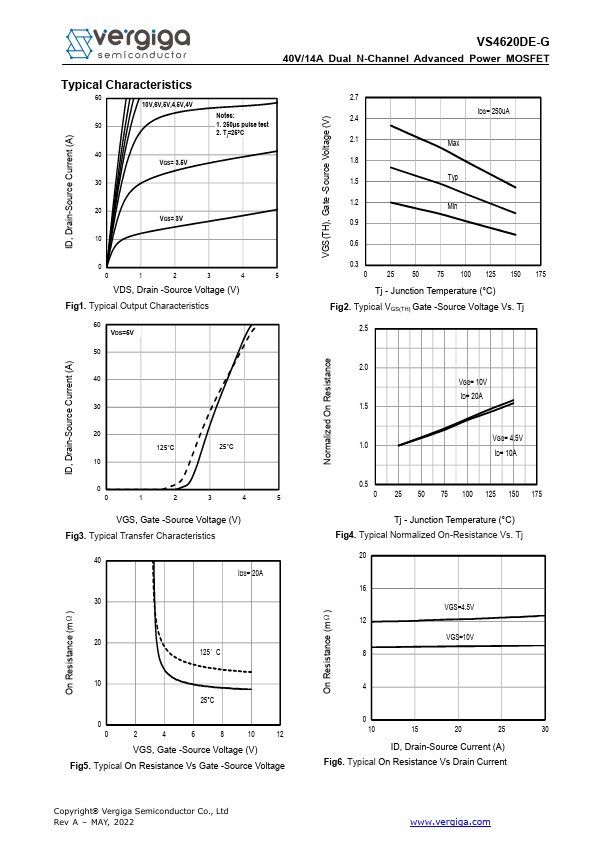

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS4620DE-G
Manufacturer
Vergiga
File Size
952.44 KB
Datasheet
VS4620DE-G-Vergiga.pdf
Description
40V/14A Dual N-Channel Advanced Power MOSFET
