EN61000-3-2

ENMods Component Power Front End System for EN Compliance

EN61000-3-2 Features

* Harmonic Current Attenuation to EN61000-3-2

* EMI Filtering to EN55022, Level B

* Transient Immunity to EN61000-4-5

* 575W Rated Power Output

* Autoranging 115/230Vac Input

* Microprocessor Control

* Inrush Current Limiting Data Sheet ENMod

EN61000-3-2 General Description

Holdup capacitors 4700pF Film Cap., 0.8µF .001µF 150kΩ, 0.5W 499Ω, 0.125W MOV 220V 270V MOV BBS75 Gas Tube 3A, PC Tron Diode (1N4006) 1N5817 Vicor Part Number see text 01000 Sizing PCB traces: All traces shown in bold carry significant current and should be sized accordingly. D2 C10 +In D4 PC (Ga.

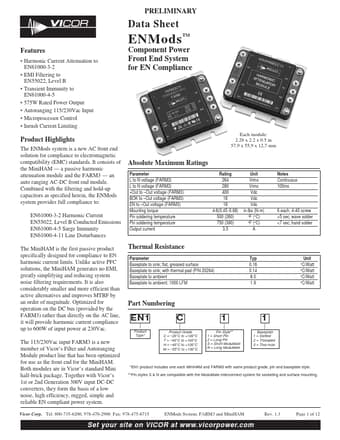

EN61000-3-2 Datasheet (347.01 KB)

Preview of EN61000-3-2 PDF

Datasheet Details

Part number:

EN61000-3-2

Manufacturer:

Vicor Corporation

File Size:

347.01 KB

Description:

Enmods component power front end system for en compliance.
