V048A015T090 - (V048x015T090) Voltage Transformation Module

Datasheet Summary

Description

Absolute Maximum Ratings Parameter +In to -In +In to -In PC to -In TM to -In VC to -In +Out to -Out Isolation voltage The V048K015T090 V I Chip Voltage Transformation Module (VTM) breaks records for speed, density and efficiency to meet the demands of advanced DSP, FPGA, ASIC, processor co

Features

  • A, B & C as defined 20g peak, 20-2,000 Hz, test in X, Y & Z directions 1,500g peak 0.5 ms pulse duration, 5 pulses in 6 directions Meets or exceeds 2,000 Volts Meets or exc.

📥 Download Datasheet

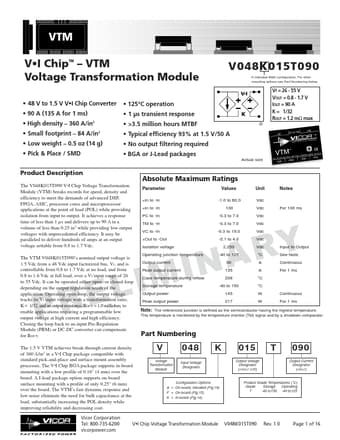

Datasheet preview – V048A015T090

Datasheet Details

Part number V048A015T090
Manufacturer Vicor Corporation
File Size 519.99 KB
Description (V048x015T090) Voltage Transformation Module
Datasheet download datasheet V048A015T090 Datasheet
Additional preview pages of the V048A015T090 datasheet.

📁 Similar Datasheet

  • V0402MHS03 - Multilayer High Speed Transient Voltage Surge Suppressor (Littelfuse)
  • V0402MHS12 - Multilayer High Speed Transient Voltage Surge Suppressor (Littelfuse)
  • V040ME01 - OSCILLATOR (Z-Communications)
  • V044ME01 - OSCILLATOR (Z-Communications)
  • V044ME01-LF - OSCILLATOR (Z-Communications)
Other Datasheets by Vicor Corporation

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com VTM V•I Chip – VTM Voltage Transformation Module TM V048K015T090 K indicates BGA configuration. For other mounting options see Part Numbering below. • 48 V to 1.5 V V•I Chip Converter • 90 A (135 A for 1 ms) • High density – 360 A/in 3 • 125°C operation • 1 µs transient response • >3.5 million hours MTBF • Typical efficiency 93% at 1.5 V/50 A • No output filtering required • BGA or J-Lead packages Actual size © Vf = 26 - 55 V VOUT = 0.8 - 1.7 V IOUT = 90 A K = 1/32 ROUT = 1.2 mΩ max • Small footprint – 84 A/in2 • Low weight – 0.
