V048F160T015, V048F160M015 Datasheet - Vicor Corporation

V048F160T015 - (V048x160x015) Voltage Transformation Module

The V048K160T015 V *I Chip Voltage Transformation Module (VTM) excels at speed, density and efficiency to meet the demands of advanced power applications while providing isolation from input to output.

It achieves a response time of less than 1 µs and delivers up to 15.0 A in a volume of less

www.DataSheet4U.com PRELIMINARY VTM V I Chip VTM Voltage Transformation Module TM V048K160T015 K indicates BGA configuration.

For other mounting options see Part Numbering below.

48 V to 16 V V I Chip Converter 15.0 A (22.5 A for 1 ms) High density 974 W/in3 Small footprint 220 W/in2 Low weight 0.5 oz (14 g) Pick & Place / SMD 125°C operation 1 µs transient

V048F160T015 Features

* ne, 0-100% load, -20°C to 125°C V

* I Chip Ball Grid Array Interconnect Qualification Test BGA solder fatigue evaluation Solder ball shear test Standard IPC-9701 IPC-SM-785 IPC

V048F160M015_VicorCorporation.pdf

This datasheet PDF includes multiple part numbers: V048F160T015, V048F160M015. Please refer to the document for exact specifications by model.

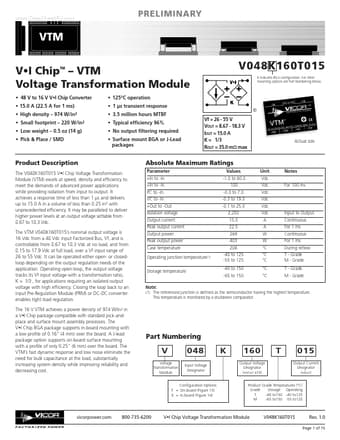

V048F160T015 Datasheet Preview Page 2 V048F160T015 Datasheet Preview Page 3

Datasheet Details

Part number:

V048F160T015, V048F160M015

Manufacturer:

Vicor Corporation

File Size:

507.89 KB

Description:

(v048x160x015) voltage transformation module.

Note:

This datasheet PDF includes multiple part numbers: V048F160T015, V048F160M015.
Please refer to the document for exact specifications by model.
