V048K160T015 (V048x160x015) Voltage Transformation Module

The V048K160T015 V *I Chip Voltage Transformation Module (VTM) excels at speed, density and efficiency to meet the demands of advanced power applications while providing isolation from input to output. It achieves a response time of less than 1 µs and delivers up to 15.0 A in a volume of less.

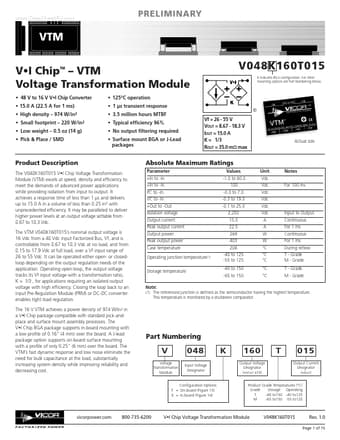

www.DataSheet4U.com PRELIMINARY VTM V I Chip VTM Voltage Transformation Module TM V048K160T015 K indicates BGA configuration. For other mounting options see Part Numbering below. 48 V to 16 V V I Chip Converter 15.0 A (22.5 A for 1 ms) High density 974 W/in3 Small footprint 220 W/in2 Low weight 0.5 oz (14 g) Pick & Place / SMD 125°C operation 1 µs transient.

V048K160T015 Features

* ne, 0-100% load, -20°C to 125°C V

* I Chip Ball Grid Array Interconnect Qualification Test BGA solder fatigue evaluation Solder ball shear test Standard IPC-9701 IPC-SM-785 IPC
