VS-18TQ040SPBF, VS-18TQ035SPBF Datasheet - Vishay Intertechnology

VS-18TQ040SPBF RECTIFIER DIODE

The VS-18TQ Schottky rectifier series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse.

VS-18TQ040SPBF Features

* Base cathode 2

* D2PAK 1 N/C 3 Anode

* PRODUCT SUMMARY IF(AV) VR 18 A 35 V to 45 V 175 °C TJ operation Low forward voltage drop High frequency operation High purity, high temperature epoxy encapsulation for

VS-18TQ035SPBF_VishayIntertechnology.pdf

This datasheet PDF includes multiple part numbers: VS-18TQ040SPBF, VS-18TQ035SPBF. Please refer to the document for exact specifications by model.

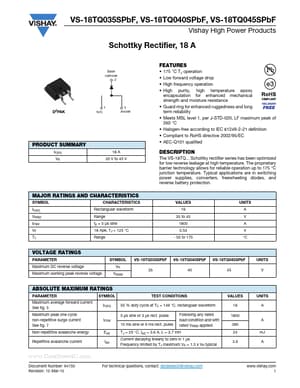

VS-18TQ040SPBF Datasheet Preview Page 2 VS-18TQ040SPBF Datasheet Preview Page 3

Datasheet Details

Part number:

VS-18TQ040SPBF, VS-18TQ035SPBF

Manufacturer:

Vishay ↗ Intertechnology

File Size:

126.42 KB

Description:

Rectifier diode.

Note:

This datasheet PDF includes multiple part numbers: VS-18TQ040SPBF, VS-18TQ035SPBF.
Please refer to the document for exact specifications by model.
