1N4007, 1N4001 1.0A RECTIFIER

1N4007 Description

1N4001, 1N4002, 1N4003, 1N4004, 1N4005, 1N4006, 1N4007 www.vishay.com Vishay General Semiconductor General Purpose Plastic Rectifier DO-41 (DO-204.

1N4007 Features

* Low forward voltage drop
* Low leakage current
* High forward surge capability
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 PRIMARY CHARACTERISTICS IF(AV) VRRM

1N4007 Applications

* For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes application. MECHANICAL DATA Case: DO-41 (DO-204AL), molded epoxy body Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Terminals: matte tin p

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4007, 1N4001. Please refer to the document for exact specifications by model.

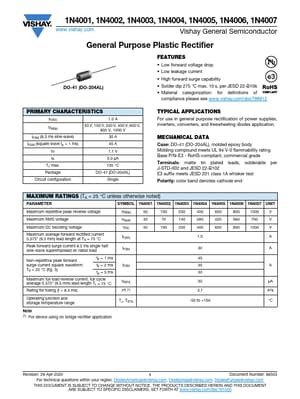

datasheet Preview Page 2 datasheet Preview Page 3
