293D Datasheet - Vishay Siliconix

293D Solid Tantalum Surface Mount Chip Capacitor

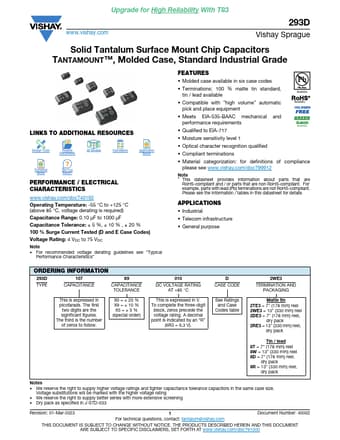

Upgrade for High Reliability With T83 www.vishay.com 293D Vishay Sprague Solid Tantalum Surface Mount Chip Capacitors TANTAMOUNT™, Molded Case, Standard Industrial Grade LINKS TO ADDITIONAL RESOURCES Design Tools Related Documents 3D 3D 3D Models Calculators Application Notes Technical Notes Did You Know? PERFORMANCE / ELECTRICAL CHARACTERISTICS www.vishay.com/doc?40192 Operating Temperature: -55 °C to +125 °C (above 85 °C, voltage derating is required) Capacitance Range: 0.10 μF to 1.

293D Features

* Molded case available in six case codes

* Terminations: 100 % matte tin standard, tin / lead available Available

* Compatible with “high volume” automatic pick and place equipment Available

* Meets EIA-535-BAAC mechanical and performance requirements

293D_VishaySiliconix.pdf
