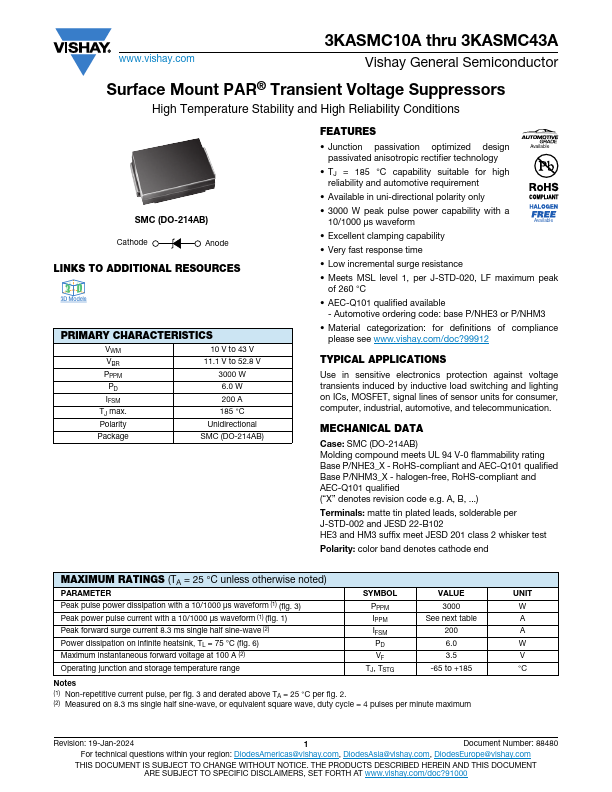

3KASMC13, 3KASMC15A Transient Voltage Suppressors

Vishay Siliconix

Description

www.vishay.com 3KASMC10A thru 3KASMC43A Vishay General Semiconductor Surface Mount PAR® Transient Voltage Suppressors High Temperature Stability and.

📥 Download Datasheet

3KASMC13 Datasheet Preview — This datasheet PDF includes multiple part numbers: 3KASMC13, 3KASMC15A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 3KASMC13, 3KASMC15A
Manufacturer: Vishay ↗ Siliconix
File Size: 100.02 KB
Datasheet: 3KASMC15A_VishaySiliconix.pdf
Description: Transient Voltage Suppressors
Note: This datasheet PDF includes multiple part numbers: 3KASMC13, 3KASMC15A.
Please refer to the document for exact specifications by model.

Features

* Junction passivation optimized design passivated anisotropic rectifier technology Available
* TJ = 185 °C capability suitable for high reliability and automotive requirement
* Available in uni-directional polarity only
* 3000 W peak pulse power capability with

Applications

* Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication. MECHANICAL DATA Case: SMC (DO-214AB) Molding compound meets UL 94 V
