3KASMC22, 3KASMC15A Transient Voltage Suppressors

3KASMC22 Description

www.vishay.com 3KASMC10A thru 3KASMC43A Vishay General Semiconductor Surface Mount PAR® Transient Voltage Suppressors High Temperature Stability and.

3KASMC22 Features

* Junction passivation optimized design passivated anisotropic rectifier technology Available
* TJ = 185 °C capability suitable for high reliability and automotive requirement
* Available in uni-directional polarity only
* 3000 W peak pulse power capability with

3KASMC22 Applications

* Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication. MECHANICAL DATA Case: SMC (DO-214AB) Molding compound meets UL 94 V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 3KASMC22, 3KASMC15A. Please refer to the document for exact specifications by model.

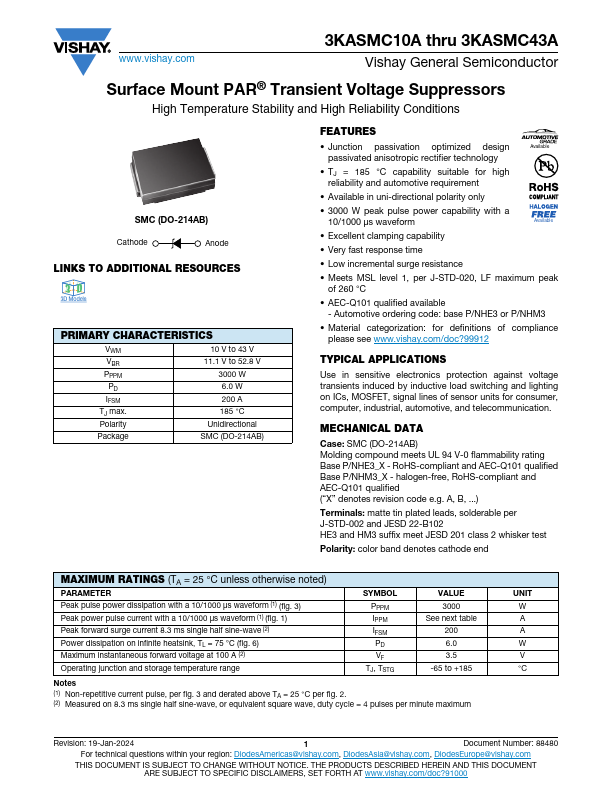

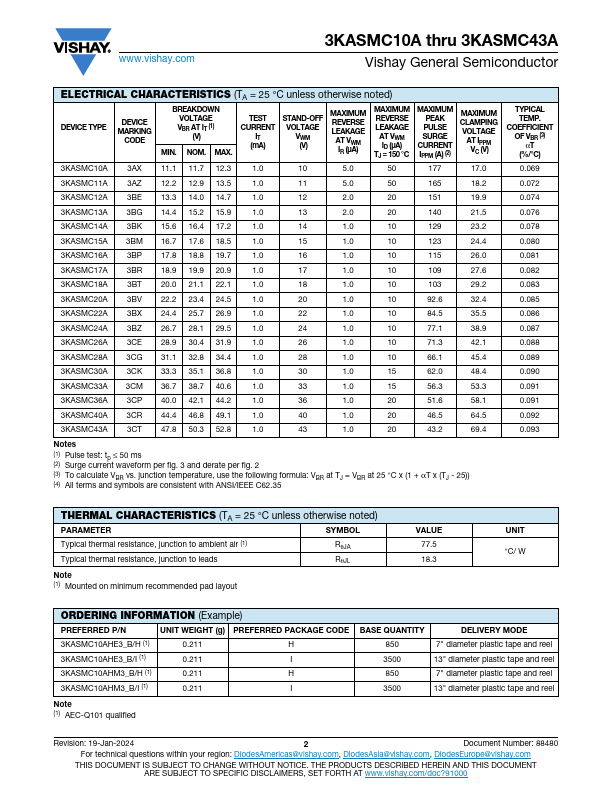

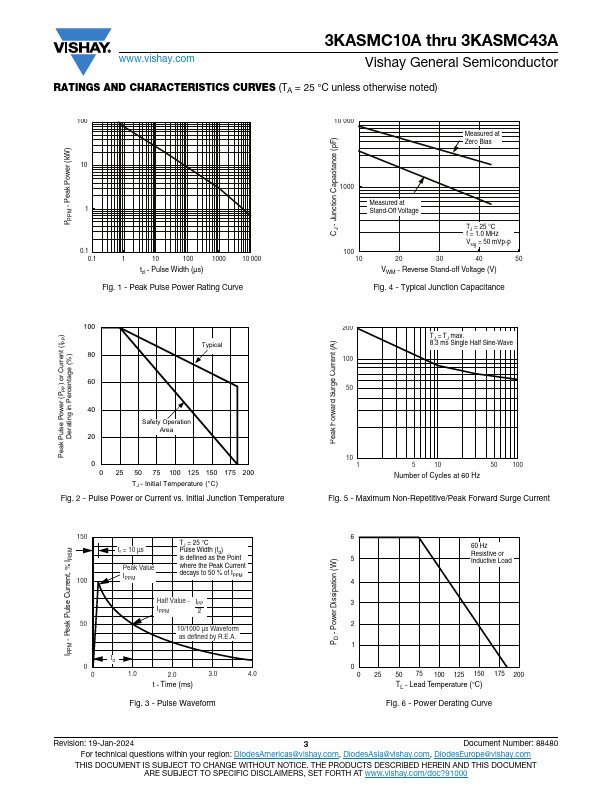

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
3KASMC22, 3KASMC15A
Manufacturer
Vishay ↗ Siliconix
File Size
100.02 KB
Datasheet
3KASMC15A_VishaySiliconix.pdf
Description
Transient Voltage Suppressors
Note
This datasheet PDF includes multiple part numbers: 3KASMC22, 3KASMC15A.
Please refer to the document for exact specifications by model.
