74802 - 800mA Low Dropout Positive Adjustable Regulator

Datasheet Summary

Description

The GS1117 is a low dropout three terminal regulator with 800mA output current capability.

The output voltage is adjustable with the use of a resistor divider.

For fixed output voltage versions, the output voltage is internally set at 2.5V, 2.85V, 3.3V or 5V.

Features

Dropout Voltage 1.2V at 800mA Output Current.
Fast Transient Response.
Line Regulation typically at 0.015%.
Load Regulation typically at 0.1%.
Internal thermal limiting.
Adjustable Output Voltage or Fixed 2.5V, 2.85V, 3.3V, 5V.
Standard 3-Pin Power Packages.

Vishay Siliconix

📥 Download Datasheet

Datasheet Details

Part number	74802
Manufacturer	Vishay Siliconix
File Size	81.90 KB
Description	800mA Low Dropout Positive Adjustable Regulator
Datasheet	74802 Datasheet

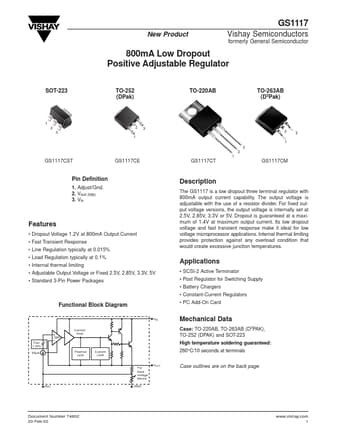

Additional preview pages of the 74802 datasheet.

📁 Similar Datasheet

7480 - Gated Full Adder (National Semiconductor)
7483 - 4-BIT BINARY FULL ADDER W/FAST CARRY (ETC)
7483A - 4 Bit Binary Full Adder (Fairchild Semiconductor)
7485 - 4-Bit Magnitude Comparator (Rochester Electronics)
7485 - 4-Bit Magnitude Comparators (National Semiconductor)
7486 - QUADRUPLE 2-INPUT EXCLUSIVE-OR GATES (Texas Instruments)
7486 - Quad 2-Input Exclusive-OR Gate (Fairchild Semiconductor)
7486A - QUADRUPLE 2-INPUT EXCLUSIVE-OR GATES (Texas Instruments)
7489 - 64 Bit RAM (Fairchild)

Other Datasheets by Vishay Siliconix

Full PDF Text Transcription

Click to expand full text

GS1117 New Product Vishay Semiconductors formerly General Semiconductor 800mA Low Dropout Positive Adjustable Regulator SOT-223 TO-252 (DPak) TO-220AB TO-263AB (D2Pak) 1 2 3 1 1 3 2 1 2 3 2 3 GS1117CST GS1117CE GS1117CT GS1117CM Pin Definition 1. Adjust/Gnd. 2. Vout (tab) 3. Vin Description The GS1117 is a low dropout three terminal regulator with 800mA output current capability. The output voltage is adjustable with the use of a resistor divider. For fixed output voltage versions, the output voltage is internally set at 2.5V, 2.85V, 3.3V or 5V. Dropout is guaranteed at a maximum of 1.4V at maximum output current. Its low dropout voltage and fast transient response make it ideal for low voltage microprocessor applications.
