85HFL100S10, 85HFL, (85HFL Series) Fast Recovery Diodes

40HFL, 70HFL, 85HFL Series Vishay High Power Products Fast Recovery Diodes (Stud Version), 40 A/70 A/85 A .

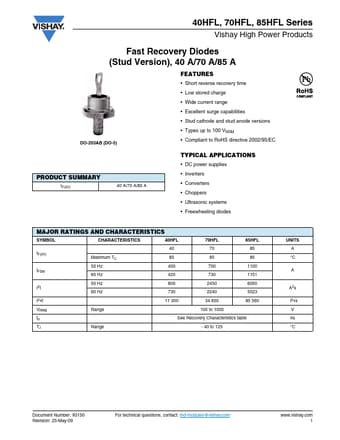

datasheet Preview Page 1 from Datasheet4u.com

85HFL_VishaySiliconix.pdf

85HFL100S10 Datasheet Preview — This datasheet PDF includes multiple part numbers: 85HFL100S10, 85HFL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

85HFL100S10, 85HFL

Manufacturer:

Vishay ↗ Siliconix

File Size:

1.92 MB

Description:

(85HFL Series) Fast Recovery Diodes

Note:

This datasheet PDF includes multiple part numbers: 85HFL100S10, 85HFL.
Please refer to the document for exact specifications by model.

Features

* Short reverse recovery time
* Low stored charge
* Wide current range
* Excellent surge capabilities
* Stud cathode and stud anode versions
* Types up to 100 VRRM DO-203AB (DO-5)

Applications

* DC power supplies PRODUCT SUMMARY IF(AV) 40 A/70 A/85 A
* Inverters
* Converters
* Choppers
* Ultrasonic systems
* Freewheeling diodes www. DataSheet. co. kr MAJOR RATINGS AND CHARACTERISTICS SYMBOL IF(AV) CHARACTERISTICS 40HFL 40 Maximum TC 50 Hz I
