BAT54C-V, BAT54-V (BAT54x-V) Small Signal Schottky Diodes

BAT54C-V Description

www.DataSheet.co.kr BAT54-V, BAT54A-V, BAT54C-V, BAT54S-V Vishay Semiconductors Small Signal Schottky Diodes, Single and Dual .

BAT54C-V Features

* These diodes feature very low turn-on voltage and fast switching
* These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges
* AEC-Q101 qualified
* Compliant to RoHS directive 2002/95/EC and in accordance to

BAT54C-V Applications

* are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular produ

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAT54C-V, BAT54-V. Please refer to the document for exact specifications by model.

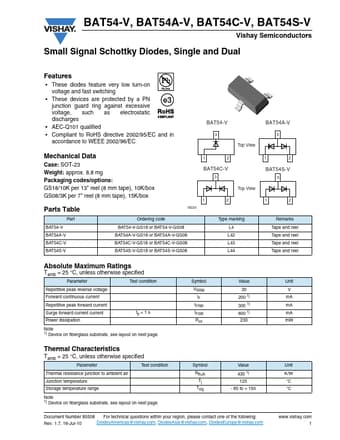

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAT54C-V, BAT54-V
Manufacturer
Vishay ↗ Siliconix
File Size
198.36 KB
Datasheet
BAT54-V_VishaySiliconix.pdf
Description
(BAT54x-V) Small Signal Schottky Diodes
Note
This datasheet PDF includes multiple part numbers: BAT54C-V, BAT54-V.
Please refer to the document for exact specifications by model.
