DG2004 Datasheet, Switch, Vishay Siliconix

DG2004 Features

• Switch D Low Voltage Operation (1.8 V to 5.5 V) D Low On-Resistance - rDS(on): 1.2 W D Fast Switching - 14 ns D Low Charge Injection - QINJ: 1 pC D Low Power Consumption D TTL/CMOS Compatible

PDF File Details

Part number:

DG2004

Manufacturer:

Vishay ↗ Siliconix

File Size:

97.65kb

Download:

📄 Datasheet

Description:

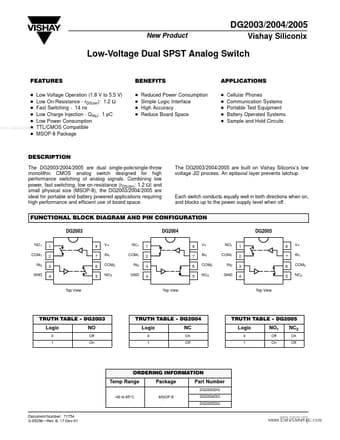

(dg2003 - dg2005) low-voltage dual spst analog switch. The DG2003/2004/2005 are dual single-pole/single-throw monolithic CMOS analog switch designed for high performance switching of analo

DG2004 Application

• Applications D D D D D Cellular Phones Communication Systems Portable Test Equipment Battery Operated Systems Sample and Hold Circuits DESCRIPTION
