DG2617, DG2616 (DG2616 - DG2618) Dual SPDT Analog Switch

DG2617 Description

www.datasheet4u.com DG2616, DG2617, DG2618 Vishay Siliconix Low Voltage, Dual SPDT Analog Switch with Charge Pump .
The DG2616, DG2617, DG2618 are monolithic CMOS analog switching products designed for high performance switching of analog signals.

DG2617 Features

* Low voltage operation (1.5 V to 3.6 V)
* Low on-resistance - RON: 4.2 Ω typ. at 2.7 V
* Fast switching: tON = 39 ns tOFF = 8 ns
* DFN-10 package RoHS COMPLIANT BENEFITS
* Reduced power consumption
* High accuracy
* Reduce board space

DG2617 Applications

* The DG2616, DG2617, DG2618 have built-in charge-pump circuitry which lowers the minimum supply voltage to + 1.5 V while maintaining low on-resistance. The Control circuitry allows the DG2616, DG2617, DG2618 to operate in different configurations. Built on Vishay Siliconix's low voltage process, the

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DG2617, DG2616. Please refer to the document for exact specifications by model.

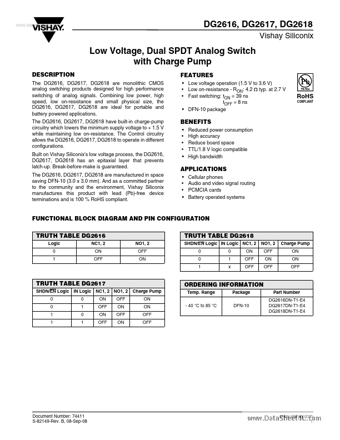

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DG2617, DG2616
Manufacturer
Vishay ↗ Siliconix
File Size
188.51 KB
Datasheet
DG2616_VishaySiliconix.pdf
Description
(DG2616 - DG2618) Dual SPDT Analog Switch
Note
This datasheet PDF includes multiple part numbers: DG2617, DG2616.
Please refer to the document for exact specifications by model.
