DG300B Datasheet, Switches, Vishay Siliconix

DG300B Features

  • Switches
  • Analog signal range: ± 15 V
  • Fast switching - tON: 150 ns
  • Low on-resistance - RDS(on): 30 
  • Single supply operation
  • Latch-up proof

PDF File Details

Part number:

DG300B

Manufacturer:

Vishay ↗ Siliconix

File Size:

206.02kb

Download:

📄 Datasheet

Description:

Cmos analog switches. The DG300B, DG303B family of monolithic CMOS switches feature three switch configuration options (SPST, SPDT, and DPST) for precision

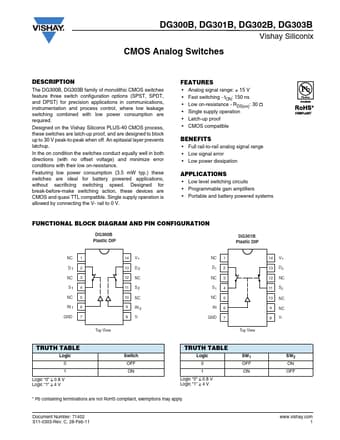

Datasheet Preview: DG300B 📥 Download PDF (206.02kb)
Page 2 of DG300B Page 3 of DG300B

DG300B Application

  • Applications in communications, instrumentation and process control, where low leakage switching combined with low power consumption are required. D
