DG3409DB Datasheet - Vishay Siliconix

DG3409DB Device OrientationMICRO FOOT Packages

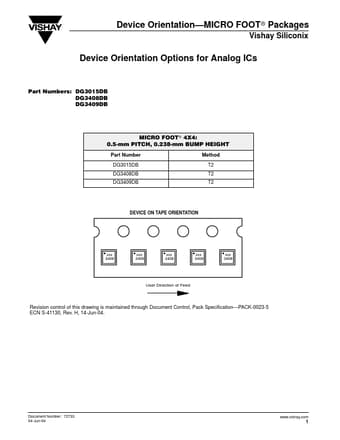

Device Orientation MICRO FOOTr Packages Vishay Siliconix Device Orientation Options for Analog ICs Part Numbers: DG3015DB DG3408DB DG3409DB MICRO FOOTr 4X4: 0.5-mm PITCH, 0.238-mm BUMP HEIGHT Part Number DG3015DB DG3408DB DG3409DB Method T2 T2 T2 DEVICE ON TAPE ORIENTATION xxx 3408 xxx 3408 xxx 3408 xxx 3408 xxx 3408 User Direction of Feed Revision control of this drawing is maintained through Document Control, Pack Specification PACK-0023-5 ECN S-41130, Rev. H, 14-Jun.

DG3409DB_VishaySiliconix.pdf

Preview of DG3409DB PDF

Datasheet Details

Part number:

DG3409DB

Manufacturer:

Vishay ↗ Siliconix

File Size:

12.31 KB

Description:

Device orientationmicro foot packages.
