DG535 - 16-Channel Wideband Video Multiplexers

DG535 Description

DG535/536 Vishay Siliconix 16-Channel Wideband Video Multiplexers .
The DG535/536 are 16-channel multiplexers designed for routing one of 16 wideband analog or digital input signals to a single output.

DG535 Features

* D D D D D D D Crosstalk:
* 100 dB @ 5 MHz 300 MHz Bandwidth Low Input and Output Capacitance Low Power: 75 mW Low rDS(on): 50 W On-Board Address Latches Disable Output BENEFITS D High Video Quality D Reduced Insertion Loss D Reduced Input Buffer Requirements D Minimizes Power Consumption D S

📥 Download Datasheet

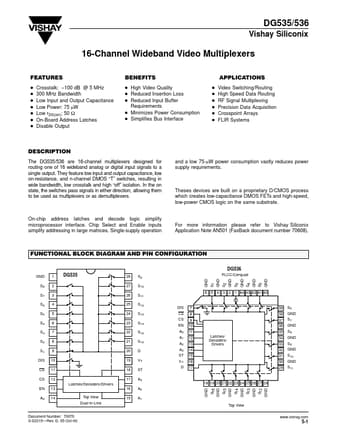

Preview of DG535 PDF
