DG9453

(DG9451 / DG9453) Multiplexers

DG9453 Features

* Halogen-free According to IEC 61249-2-21 Definition

* + 2.7 V to + 12 V single supply operation ± 2.5 V to ± 5 V dual supply operation

* Fully specified at + 12 V, + 5 V, ± 5 V

* Low charge injection (< 0.5 pC typ.)

* High bandwidth: 270 MHz

* Low sw

DG9453 General Description

The DG9451, and DG9453 are high precision single and dual supply CMOS analog multiplexers. DG9451 is an 8-channel multiplexer, and the DG9453 is a triple 2-channel multiplexer or triple SPDT. Designed to operate from a + 2.7 V to + 12 V single supply or from a ± 2.5 V to ± 5 V dual supplies, the DG9.

DG9453 Datasheet (250.79 KB)

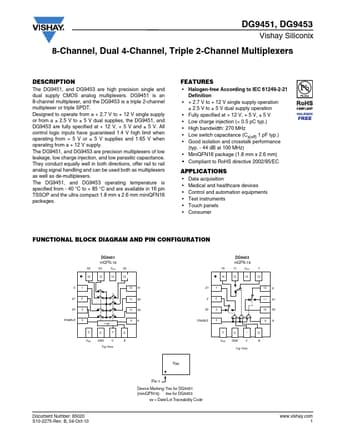

Preview of DG9453 PDF

Datasheet Details

Part number:

DG9453

Manufacturer:

Vishay ↗ Siliconix

File Size:

250.79 KB

Description:

(dg9451 / dg9453) multiplexers.
