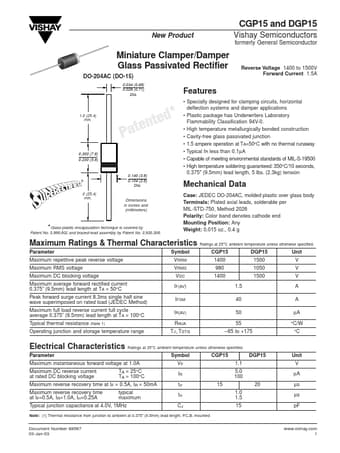

DGP15
Features
- Specially designed for clamping circuits, horizontal deflection systems and damper applications
- Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
- High temperature metallurgically bonded construction
- Cavity-free glass passivated junction
- 1.5 ampere operation at TA=50°C with no thermal runaway
- Typical IR less than 0.1µA
- Capable of meeting environmental standards of MIL-S-19500
- High temperature soldering guaranteed: 350°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension
1.0 (25.4) min.
- d e t n e t Pa
0.140 (3.6) 0.104 (2.6) Dia.
0.300 (7.6) 0.230 (5.8)
®
Mechanical Data
Case: JEDEC DO-204AC, molded plastic over glass body Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight: 0.015 oz., 0.4 g
1.0 (25.4) min.
Dimensions in inches and (millimeters)
- Glass-plastic encapsulation technique is covered by Patent No. 3,996,602 and...
