HPC0402A - High Performance/ High Precision Surface Mount 0402 Capacitor

Product Overview

Vishay Siliconix

📥 Download Datasheet

HPC0402A High Performance/ High Precision Surface Mount 0402 Capacitor by Vishay Siliconix - Datasheet Preview — Datasheet preview – HPC0402A

Datasheet Details

Part number	HPC0402A
Manufacturer	Vishay Siliconix
File Size	81.20 KB
Description	High Performance/ High Precision Surface Mount 0402 Capacitor
Datasheet	HPC0402A Datasheet

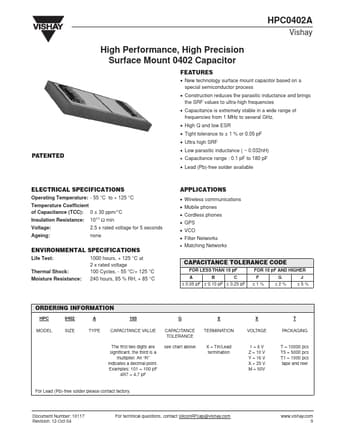

Additional preview pages of the HPC0402A datasheet.

Product details

Features

∑ New technology surface mount capacitor based on a special semiconductor process ∑ Construction reduces the parasitic inductance and brings the SRF values to ultra-high frequencies ∑ Capacitance is extremely stable in a wide range of frequencies from 1 MHz to several GHz. ∑ High Q and low ESR ∑ Tight tolerance to ± 1 % or 0.05 pF ∑ Ultra high SRF ∑ Low parasitic inductance ( ~ 0.032nH).
