HS0038B - Photo Modules Infrared Receiver

Vishay

Datasheet Details

Part number	HS0038B
Manufacturer	Vishay
File Size	134.86 KB
Description	Photo Modules Infrared Receiver
Datasheet	HS0038B Datasheet

The HS0038B – series are miniaturized receivers for infrared remote control systems.

PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter.

The demodulated output signal can directly be decoded by a microprocessor.

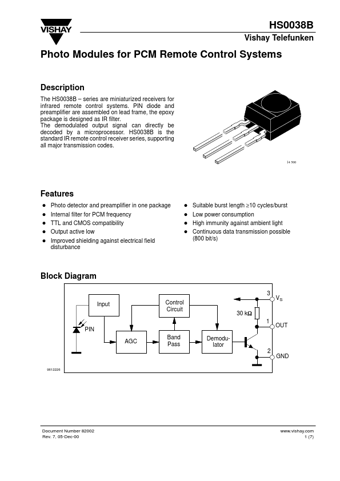

HS0038B Vishay Telefunken Photo Modules for PCM Remote Control.

D D D D D Photo detector and preamplifier in one package Internal filter for PCM frequency TTL and CMOS compatibility Output active low Improved shielding against electrical field disturbance D D D D Suitable burst length ≥10 cycles/burst Low power consumption High immunity against ambient light Continuous data transmission possible (800 bit/s) Block Diagram 3 Input Control Circuit 30 kW 1 PIN AGC Band Pass Demodulator 2 9612226 VS OUT GND Document Number 82002 Rev. 7, 05-Dec-00 www. vish.
