IDC-5020

High Current / Surface Mount Inductor

IDC-5020 Features

* High energy storage.

* Low resistance.

* Tape and reel packaging for automatic handling. ELECTRICAL SPECIFICATIONS Inductance Range: 1.0µH to 1000µH, tested at 1.0Vrms. Inductance Tolerance: 20%, tighter tolerances available upon request. Operating Temperature: - 40°C to +

IDC-5020 General Description

IDC-5020 MODEL 10µH INDUCTANCE VALUE ± 20% INDUCTANCE TOLERANCE SAP PART NUMBERING GUIDELINES (INTERNAL) I D C 5 0 SIZE 2 0 N B 1 0 0 M TOL. PRODUCT FAMILY See the end of this data book for conversion tables DataSheet4U.com PACKAGE CODE INDUCTANCE VALUE www.vishay.com 32 For technical.

IDC-5020 Datasheet (240.76 KB)

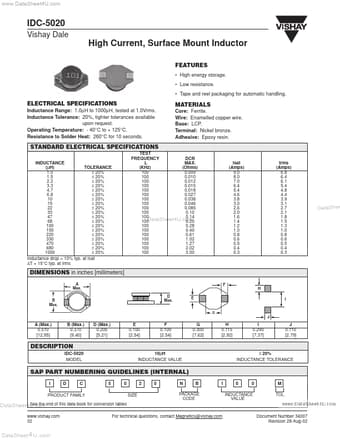

Preview of IDC-5020 PDF

Datasheet Details

Part number:

IDC-5020

Manufacturer:

Vishay ↗ Siliconix

File Size:

240.76 KB

Description:

High current / surface mount inductor.
