IHLP-2525BD-01 Datasheet - Vishay Siliconix

IHLP-2525BD-01 Commercial Inductor

IHLP-2525BD-01 MODEL 1.0 μH INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HL P 2 5 2 5 BDER1R 0M0 1 PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE TOL. SERIES PATENT(S): www.vishay.com/patents This Vishay product is p.

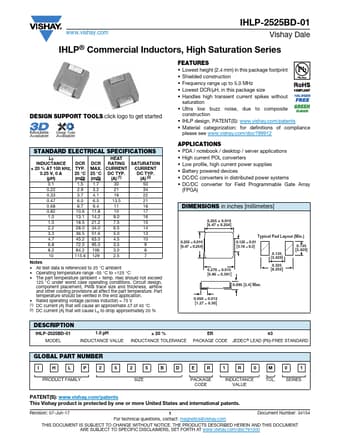

www.vishay.com IHLP-2525BD-01 Vishay Dale IHLP® Commercial Inductors, High Saturation Series DESIGN SUPPORT TOOLS click logo to get started Models Available Design Tools Available STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE DCR ± 20 % AT 100 kHz, TYP. 0.25 V, 0 A 25 °C (μH) (mΩ) 0.1 1.5 0.22 2.9 0.33 3.7 0.47 6.0 0.68 8.7 0.82 10.6 1.0 13.1 1.5 18.5 2.2 28.0 3.3 36.5 4.7 45.2 6.8 72.5 8.2 84.2 10 115.6 DCR MAX. 25 °C (mΩ) 1.7 3.2 4.1 6.5 9.4 11.8 14.2 21.2 34.0 51.

IHLP-2525BD-01 Features

* Lowest height (2.4 mm) in this package footprint

* Shielded construction

* Frequency range up to 5.0 MHz

* Lowest DCR/μH, in this package size

* Handles high transient current spikes without saturation

* Ultra low buzz noise, due to composite constru

IHLP-2525BD-01 Datasheet (125.63 KB)
