IHLP-2525CZ-01, IHLP2525CZER1R0M01 Datasheet - Vishay Siliconix

IHLP-2525CZ-01 Commercial Inductors

IHLP-2525CZ-01 1.0 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER PACKAGE CODE e3 JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I H L P 2 5 2 5 C Z E R 1 R 0 M 0 1 PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE TOL. SERIES PATENT(S): www.vishay.com/pa.

For Automotive Grade / Higher Temperature Upgrade to IHLP-2525CZ-5A www.vishay.com IHLP-2525CZ-01 Vishay Dale IHLP® Commercial Inductors, High Saturation Series LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Design Tools STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE HEAT ± 20 % DCR DCR RATING SATURATION AT 100 kHz, TYP. MAX. CURRENT CURRENT SRF 0.25 V, 0 A 25 °C 25 °C DC TYP. DC TYP. TYP. (μH) (mΩ) (mΩ) (A) (1) (A) (2) (MHz) 0.10 1.5 1.7 32.5 60 400 0.15 1.9 2.5 26 5.

IHLP-2525CZ-01 Features

* Lowest height (3.0 mm) in this package footprint

* Shielded construction

* Excellent DC/DC energy storage up to 5 MHz. Filter inductor applications up to SRF (see “Standard Electrical Specifications” table)

* Lowest DCR/μH, in this package size

* Handles hig

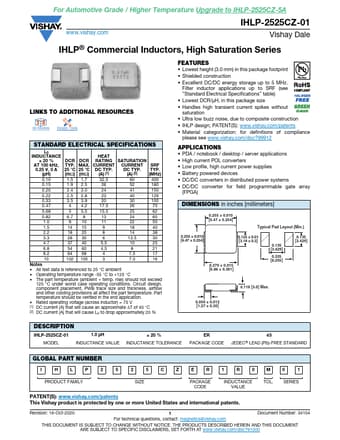

IHLP2525CZER1R0M01_VishaySiliconix.pdf
