IHLP-4040DZ-11, IHLP4040DZ-11 Commercial Inductors

Vishay Siliconix

Description

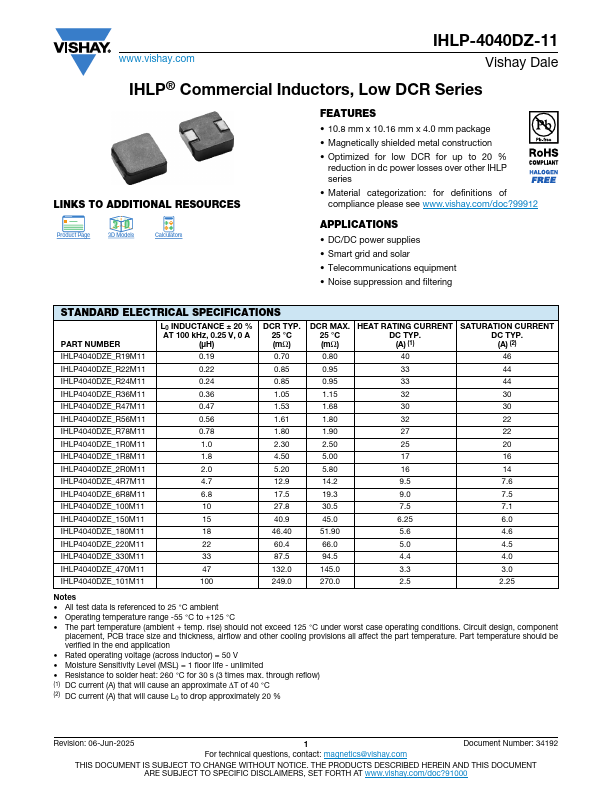

www.vishay.com IHLP-4040DZ-11 Vishay Dale IHLP® Commercial Inductors, Low DCR Series LINKS TO ADDITIONAL RESOURCES Product Page 3D 3D 3D Models .
IHLP-4040DZ-11 2.

📥 Download Datasheet

IHLP-4040DZ-11 Datasheet Preview — This datasheet PDF includes multiple part numbers: IHLP-4040DZ-11, IHLP4040DZ-11. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IHLP-4040DZ-11, IHLP4040DZ-11
Manufacturer: Vishay ↗ Siliconix
File Size: 140.61 KB
Datasheet: IHLP4040DZ-11_VishaySiliconix.pdf
Description: Commercial Inductors
Note: This datasheet PDF includes multiple part numbers: IHLP-4040DZ-11, IHLP4040DZ-11.
Please refer to the document for exact specifications by model.

Features

* 10.8 mm x 10.16 mm x 4.0 mm package
* Magnetically shielded metal construction
* Optimized for low DCR for up to 20 % reduction in dc power losses over other IHLP series
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 APP

Applications

* DC/DC power supplies
* Smart grid and solar
* Telecommunications equipment
* Noise suppression and filtering STANDARD ELECTRICAL SPECIFICATIONS PART NUMBER L0 INDUCTANCE ± 20 % DCR TYP. AT 100 kHz, 0.25 V, 0 A 25 °C (μH) (mΩ) IHLP4040DZE_R19M11 0.19 0.70
