IMCH-1812 Datasheet, Inductors, Vishay Siliconix

IMCH-1812 Features

• Inductors
• Molded construction provides superior strength and moisture resistance.
• Tape and reel packaging for automatic handling, 500/ reel, EIA-481
• Compatible with

PDF File Details

Part number:

IMCH-1812

Manufacturer:

Vishay ↗ Siliconix

File Size:

153.26kb

Download:

📄 Datasheet

Description:

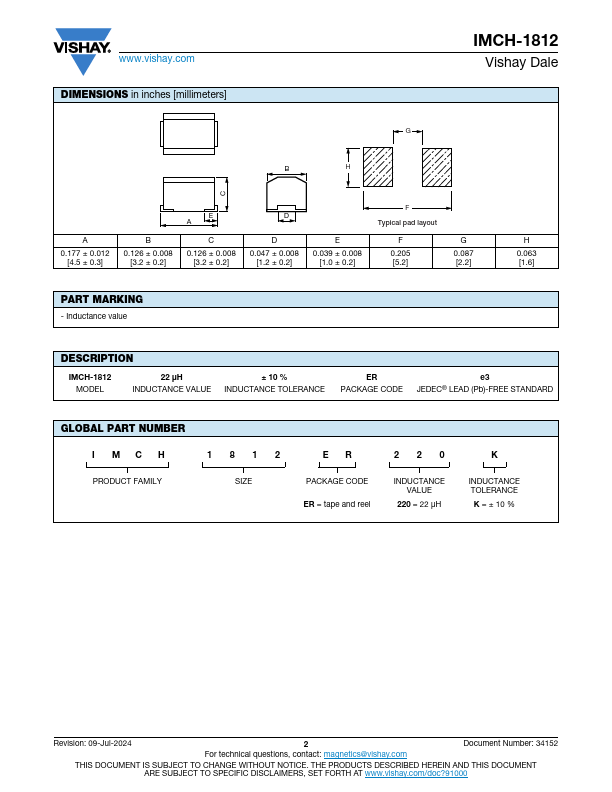

Molded inductors. IMCH-1812 MODEL 22uH INDUCTANCE VALUE ± 10% INDUCTANCE TOLERANCE Document Number: 34152 Revision 28-Oct-02 For technical questions
