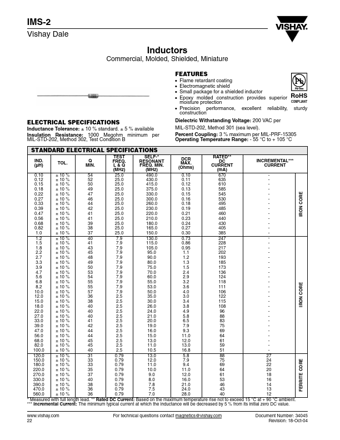

IMS-2
FEATURES
- -
- - Flame retardant coating Electromagnetic shield Small package for a shielded inductor Epoxy molded construction provides superior moisture protection
- Precision performance, excellent reliability, construction
Ro HS
PLIANT sturdy
ELECTRICAL SPECIFICATIONS
Inductance Tolerance: ± 10 % standard. ± 5 % available Insulation Resistance: 1000 Megohm minimum per MIL-STD-202, Method 302, Test Condition B
Dielectric Withstanding Voltage: 200 VAC per MIL-STD-202, Method 301 (sea level). Percent Coupling: 3 % maximum per MIL-PRF-15305 Operating Temperature Range:
- 55 °C to + 105 °C
STANDARD ELECTRICAL SPECIFICATIONS
RATED-
- SELF-- TEST DCR INCREMENTAL-
- - DC RESONANT FREQ. MAX. CURRENT CURRENT FREQ. MIN. L&Q (Ohms) (m A) (MHz) (MHz) 0.10 ± 10 % 54 25.0 490.0 0.10 670 0.12 ± 10 % 52 25.0 430.0 0.11 635 0.15 ± 10 % 50 25.0 415.0 0.12 610 0.18 ± 10 % 49 25.0 375.0 0.13 585 0.22 ± 10 % 47 25.0 330.0 0.15 545 0.27 ± 10 % 46 25.0 300.0 0.16 530 0.33 ± 10 % 44 25.0 260.0 0.18 495...
