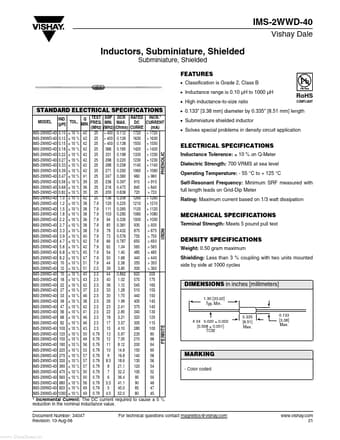

IMS-2WWD-40
FEATURES
- Classification is Grade 2, Class B
- Inductance range is 0.10 µH to 1000 µH
- High inductance-to-size ratio
Ro HS
PLIANT
STANDARD ELECTRICAL SPECIFICATIONS
IND. Q TEST SRF DCR RATED INCR.- MODEL TOL. DC CURRENT (µH) MIN. FREQ. MIN. MAX. (MHz) (MHz) (Ohms) CURRE (m A) IMS-2WWD-40 0.10 ± 10 % 42 25 > 400 0.112 1720 > 1720 IMS-2WWD-40 0.12 ± 10 % 42 25 > 400 0.126 1630 > 1630 IMS-2WWD-40 0.15 ± 10 % 42 25 > 400 0.138 1550 > 1550 IMS-2WWD-40 0.18 ± 10 % 42 25 366 0.165 1420 > 1420 IMS-2WWD-40 0.22 ± 10 % 42 25 331 0.198 1330 > 1330 IMS-2WWD-40 0.27 ± 10 % 42 25 298 0.220 1230 > 1230 IMS-2WWD-40 0.33 ± 10 % 42 25 288 0.258 1140 > 1140 IMS-2WWD-40 0.39 ± 10 % 42 25 271 0.292 1060 > 1060 IMS-2WWD-40 0.47 ± 10 % 41 25 247 0.360 960 > 960 IMS-2WWD-40 0.56 ± 10 % 39 25 236 0.397 915 > 915 IMS-2WWD-40 0.68 ± 10 % 36 25 216 0.472 840 > 840 IMS-2WWD-40 0.82 ± 10 % 35 25 200 0.638 720 > 720 IMS-2WWD-40 1.0 ± 10 % 42 25 136 0.208 1260 > 1260 IMS-2WWD-40 1.2 ± 10 % 38 7.9 120 0.225 1210 >...
