IRM7001

SIR Modulator/Demodulator

IRM7001 Features

* Compliant with IrDA 1.0 Physical Layer Specifications

* Interfaces with IrDA 1.0 Compliant IR Transceivers

* Used in conjunction with Standard 16550 UART

* Transmits/Receives either 1.6µs or 3/16 Pulse Mode

* Internal or External Clock Mode

* Programm

IRM7001 General Description

The IRM7001 SIR-Encoder/Decoder is a CMOS modulator/ demodulator chip that is used to both encode and decode information as per the IrDA® SIR (Serial InfraRed) signal modulation and demodulation scheme. This chip is designed to work with Infineon IrDA compatible transceivers and all other IrDA compat.

IRM7001 Datasheet (531.67 KB)

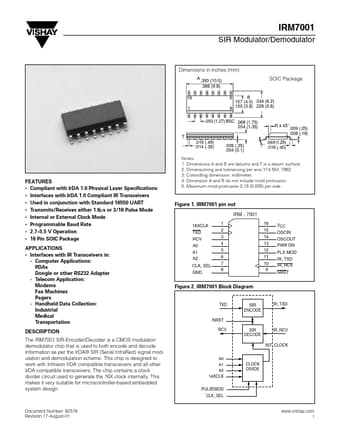

Preview of IRM7001 PDF

Datasheet Details

Part number:

IRM7001

Manufacturer:

Vishay ↗ Siliconix

File Size:

531.67 KB

Description:

Sir modulator/demodulator.
IRM7001 SIR Modulator/Demodulator Dimensions in inches (mm) A .393 (10.0) .386 (9.8) 16 1 9 B .157 (4.0) .244 (6.2) 8 .150 (3.8) .229 (5.8) SOIC Pac.
