MKP379 Datasheet (Vishay Siliconix) - AC and Pulse Metallized Polypropylene Film Capacitors MKP Radial Potted Type

MKP379, AC and Pulse Metallized Polypropylene Film Capacitors MKP Radial Potted Type

Tangent of loss angle: C ≤ 0.075 µF 0.075 µF < C ≤ 0.11 µF 0.11 µF < C ≤ 0.16 µF 0.18 µF < C ≤ 0.3 µF 0.3 µF < C ≤ 0.39 µF 0.39 µF < C ≤ 0.56 µF 0.56 µF < C ≤ 0.68 µF 0.68 µF < C ≤ 0.82 µF 0.82 µF < C ≤ 0.91 µF 0.91 µF < C ≤ 1.0 µF 1.0 µF < C ≤ 1.2 µF 1.2 µF < C ≤ 1.3 µF 1.3 µF < C ≤ 1.5 µF 1.5 µF <

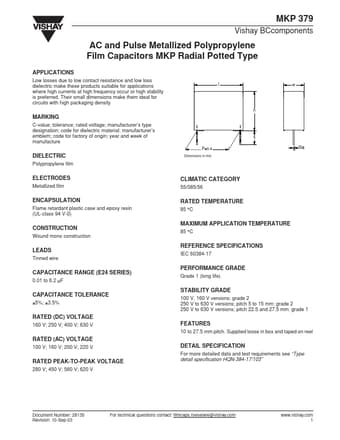

MKP 379 Vishay BCcomponents AC and Pulse Metallized Polypropylene Film Capacitors MKP Radial Potted Type APPLICATIONS Low losses due to low contact resistance and low loss dielectric make these products suitable for applications where high currents at high frequency occur or high stability is preferred.

Their small dimensions make them ideal for circuits with high packaging density 168x12(halfpage) l w h MARKING C-value; tolerance; rated voltage; manufacturer’s type designation; code for di

MKP379 Features

* 10 to 27.5 mm pitch. Supplied loose in box and taped on reel RATED (AC) VOLTAGE 100 V; 160 V; 200 V; 220 V DETAIL SPECIFICATION For more detailed data and test requirements see “Type detail specification HQN-384-17/103” RATED PEAK-TO-PEAK VOLTAGE 280 V; 450 V; 560 V; 620 V Document Number: 28135
