MP10 - Power Rheostats

Product Overview

Vishay Siliconix

📥 Download Datasheet

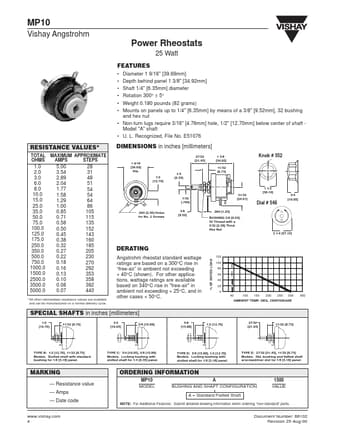

MP10 Power Rheostats by Vishay Siliconix - Datasheet Preview — Datasheet preview – MP10

Datasheet Details

Part number	MP10
Manufacturer	Vishay Siliconix
File Size	107.73 KB
Description	Power Rheostats
Datasheet	MP10 Datasheet
Additional preview pages of the MP10 datasheet.

Product details

Description

only.

Features

Diameter 1 9/16" [39.69mm] Depth behind panel 1 3/8" [34.92mm] Shaft 1/4" [6.35mm] diameter Rotation 300° ± 5° Weight 0.180 pounds (82 grams) Mounts on panels up to 1/4" [6.35mm] by means of a 3/8" [9.52mm], 32 bushing and hex nut.
Non-turn lugs require 3/16" [4.76mm] hole, 1/2" [12.70mm] below center of shaft Model "A" shaft.
U. L. Recognized, File No. E51076.
