RS07G - Fast Rectifier

RS07G Description

www.vishay.com RS07B, RS07D, RS07G, RS07J, RS07K Vishay Semiconductors Fast Rectifier Surface-Mount eSMP® Series 1 2 23020 23019 SMF (DO-219AB).

RS07G Applications

* Low profile package
* Ideal for automated placement
* Glass passivated
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* Meets JESD 201 class 2 whisker test
* Wave and reflow solderable
* Base P/N-E3 - RoHS-compliant Base P/N-GS

📥 Download Datasheet

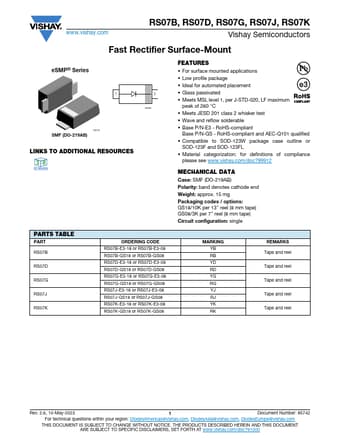

Preview of RS07G PDF
datasheet Preview Page 2 datasheet Preview Page 3
